出口型高清衛星接收機：DVBS2 支持DVBS、MPEG-2、MPEG-4、H264等格式的衛星電視信號，DVB-S2-8PSK MPEG-4高清衛星接收機

體積小巧，外置電源，高清畫質特別適合非洲、中東、歐美、韓國、港、澳、台地區的高清衛視信號接收

● 輸入頻率範圍:950MHz-2150MHz
● 支持DiSEqc1.0/DiSEqc1.2
● SCPC或MCPC接收,C或KU波段兼容接收
● 獨持的快速選台功能
● 可對頻道進行喜愛、移動、刪除、加鎖設置
● 支持4:3和16:9屏幕寬高比轉換
● 支持強大軟件升級功能(USB)
● 支持USB 2.0 MP3音樂播放與JPG圖片顯示
● 支持外置USB PVR錄像功能

Hardware
CPU: MSTAR-MSD7802(128 pin) MIPS34Kf@600MHz
Memory: 32X16Mbit  DDR2 Frequency1066
Flash: 32M bytes
Demodulator Type: MSB1310 Chip Set
TUNER: AV2018
USB 2.0: USB 2.0
Front Panel: 4-digit LED display on front panel
             red LED Standby,green  LED Lock
Rear Panel: Tuner RF input connector
IEC60169-2/T-TYPE 75Ohm Unbalanced
            Tuner RF Loop through connector   IEC169-2/F-TYPE
            HDMI V1.3
            AV RCA x1
            Ypbpr RCAx1
            Coaxial x1
            Power  AC100~240V  50Hz/60Hz

Channel Decoder
Demodulation:
Frequency Range: 850MHz to 2500MHz
Sensitivity  Level: - 10~ - 81dBm
DeModulation: COFDM
Mode IFFT: 2k,8k
FEC Mode : 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals: 1/4,1/8,1/16,1/32
Constellation: QPSK、8PSK、16APSK、32APSK
Neighboring channels immunity and  Protection : According to ETSI TR 101 190 V1.2.1
Active Ant Power: 13/18V DC @ 500mA MAX,Overload Protection

Sortware Features
Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
Automatic PAL/NTSC conversion
DiSEqC 1.0 / 1.1 / 1.2/1.3 & USALS
Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Support teletext/subtitle/muti-language
Powerful and highly effective 7-day EPG function
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder
Video Decoder:
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/AdvancedProfile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding  HE-AAC 5.1 multi-chhannel decoding
MediaCodec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec
Photo Codec
License:
Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License.

Accessories:
gift box
AV cable optional
HDMI cable optional
IR remote control
User Manual

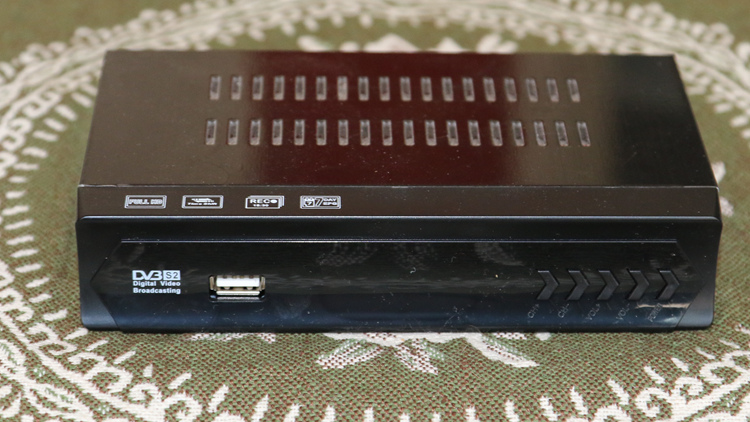

機器前麵板實物圖

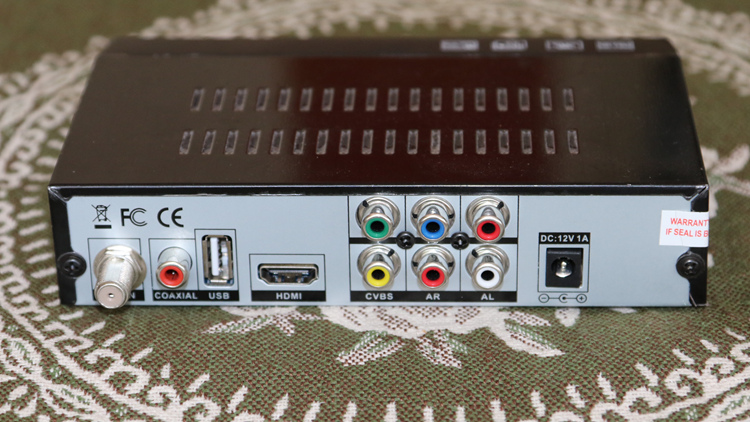

高清衛星接收機後板實物圖，具備LNB輸入接口，高清HDMI輸出接口，分量端子、AV輸出等

此款高清衛星接收機主要銷售到大陸以外地區 ，多國語言菜單（沒有中文操作菜單）量少可以訂製增加中文界麵的機器
